ترجمه مکانیک- انرژی -13 صفحه
تحلیل سرعت و چگالی نیروی باد در Let_seng-la-terae در Lesotho

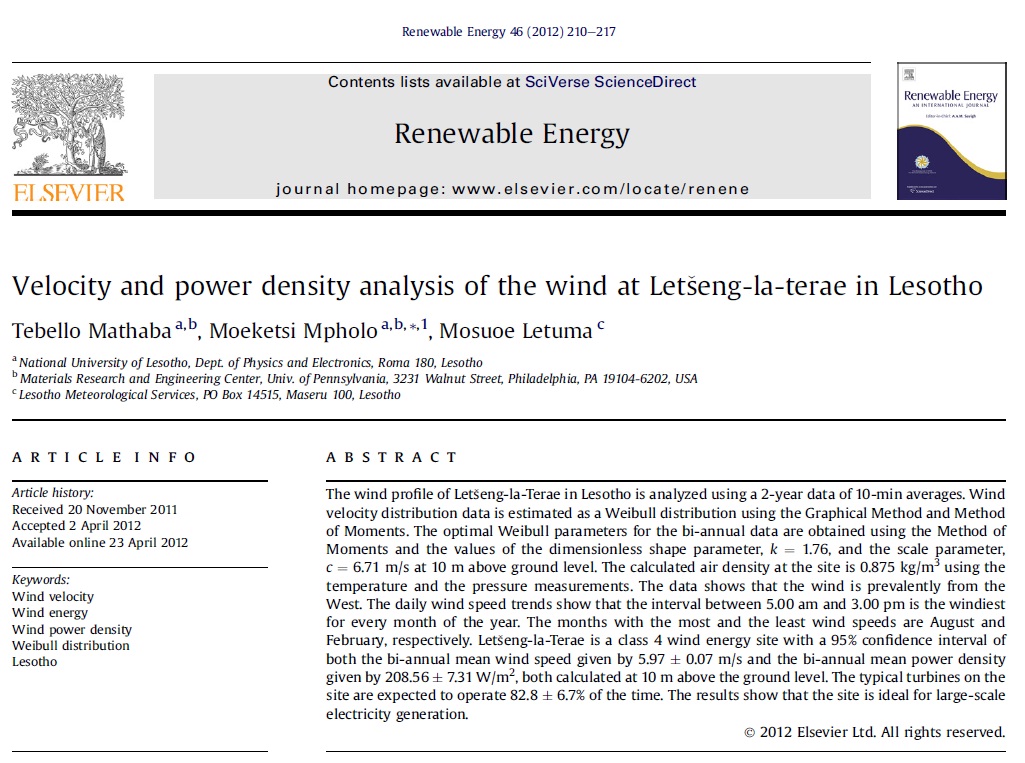

Velocity and power density analysis of the wind at Letšeng-la-terae in Lesotho
Tebello Mathabaa, b, Moeketsi Mpholoa,Mosuoe Letumac
سال 2012
- http://dx.doi.org/10.1016/j.renene.2012.04.003
- دانلود رایگان مقاله انگلیسی - تحلیل سرعت و چگالی نیروی باد
چکیده
نمودار باد لتسنگ لا ترا در لسوتو با استفاده از یک دیتای دوبار در سال از میانگین های 10 دقیقه ای تحلیل می شود.داده های توزیع سرعت باد به صورت یک توزیع وایبال براورد می شود که با استفاده از متد نموداری و متد ممان ها (لحظات) صورت می گیرد.پارامترهای وایبالبهینه برای دیتای دوبار در سال ،با استفاده از متد ممان ها و مقادیر پارامتر شکل بی بُعد (بی حد) ، k=1.76 وپارامتر مقیاس c = 6.71 m/s at 10 m بالای سطح زمین بدست می آید.چگالی هوای محاسبه شده با استفاده از اندازه گیری های دما و فشار برابر با 0.875 kg/m3 است.داده ها نشان می دهد که باد غالبا از غرب می آید.روند سرعت باد روزانه نشان می دهد بازه ی بین 5.00 صبح تا 3.00 بعد از ظهر بادی ترین وقت برای هر ماه از سال است.ماه هایی که بیشترین و کمترین سرعت باد را دارند به ترتیب آگورست و فوریه می باشند.لتسنگ لا تراس یک سایت انرژی بادی کلاس 4 است که دارای یک فاصله ی اعتماد 95 درصدی از هم سرعت باد متوسط دو بار در سال است که با 5.97 +_ 0.07 m/s داده شده و هم چگالی نیروی میانگین دوبار در سال که با 208.56+ _ 7.31 W/m2 داده شده است، هر دو در 10 متر بالای سطح زمین محاسبه شده اند.توربین های نوعی بر روی سایت انتظار می رود 82.8+ _ 6.7% درصد از زمان را کار کنند. نتایج نشان می دهد این سایت برای تولید برق مقیاس کلان ایده ال است.
Abstract
The wind profile of Letšeng-la-Terae in Lesotho is analyzed using a 2-year data of 10-min averages. Wind velocity distribution data is estimated as a Weibull distribution using the Graphical Method and Method of Moments. The optimal Weibull parameters for the bi-annual data are obtained using the Method of Moments and the values of the dimensionless shape parameter, k = 1.76, and the scale parameter, c = 6.71 m/s at 10 m above ground level. The calculated air density at the site is 0.875 kg/m3 using the temperature and the pressure measurements. The data shows that the wind is prevalently from the West. The daily wind speed trends show that the interval between 5.00 am and 3.00 pm is the windiest for every month of the year. The months with the most and the least wind speeds are August and February, respectively. Letšeng-la-Terae is a class 4 wind energy site with a 95% confidence interval of both the bi-annual mean wind speed given by 5.97 ± 0.07 m/s and the bi-annual mean power density given by 208.56 ± 7.31 W/m2, both calculated at 10 m above the ground level. The typical turbines on the site are expected to operate 82.8 ± 6.7% of the time. The results show that the site is ideal for large-scale electricity generation.
Highlights
► The wind profile of Letšeng-la-Terae in Lesotho is analyzed using a 2-year data. ► The dimensionless shape parameter, k = 1.76, and the scale parameter, c = 6.71 m/s. ► The wind is prevalently from the West. ► The interval between 5.00 am and 3.00 pm is the windiest for every month. ► The mean wind speed is 5.97 ms−1 and mean power density is 209 Wm−2.
Keywords
Wind velocity; Wind energy; Wind power density; Weibull distribution; Lesotho
